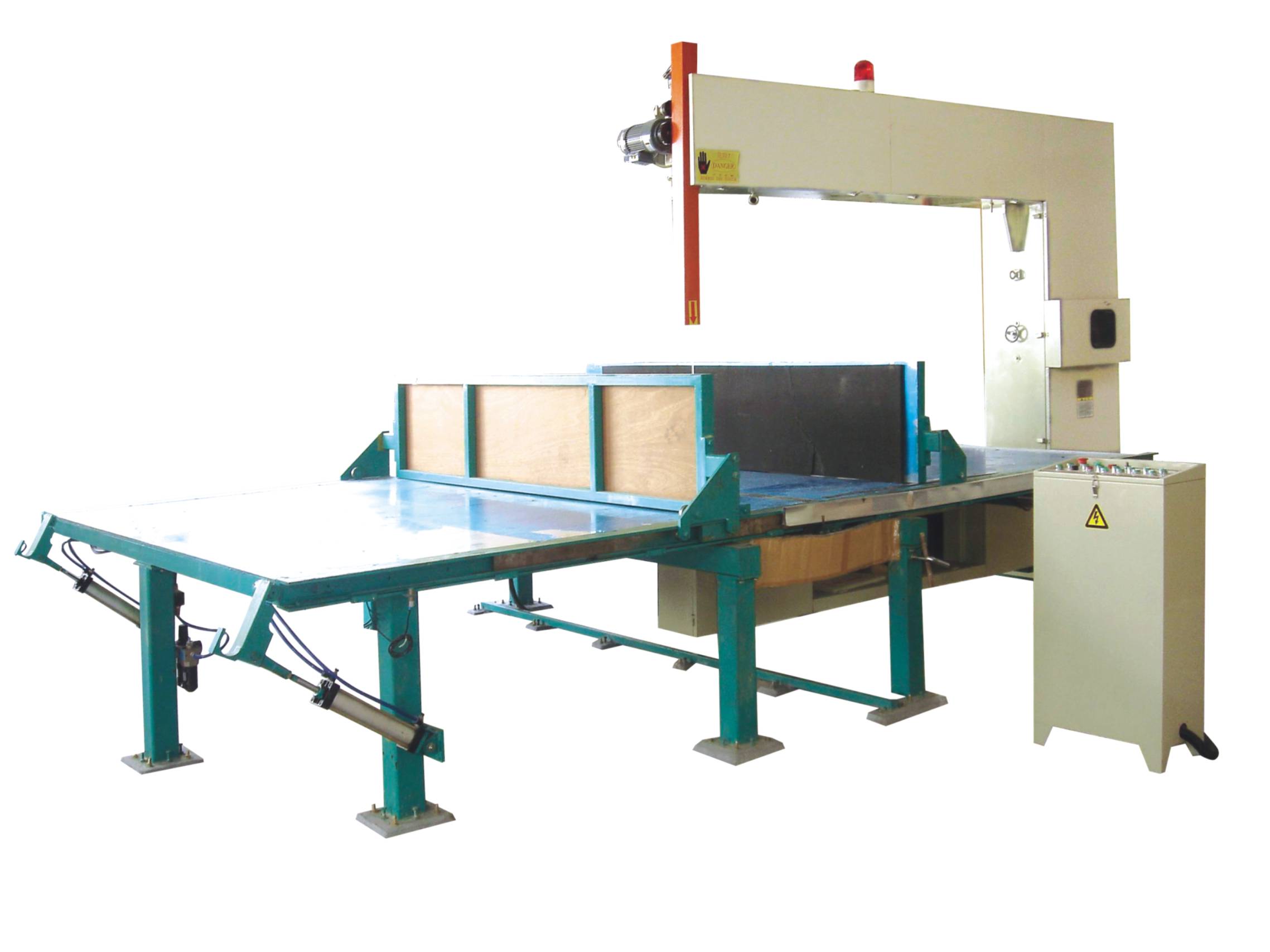

This machine adopts head moving, table fixed form, movable cutting tool rest with synchronous belt drive, work platform single damper using ball screw, improve the cutting precision, It also can process all kinds of EVA and pearl cutton. The machine adopts frequency control of motor speed automatic control, the control platform with PLC and human-computer interface, with a high degree of automation, cutting precision and safe operation.
|
Model |
ZXLQ-4LA |
|
Inside worktable size |
W2150*L2240mm |
|
Outside worktable size |
W2150*L2240mm |
|
Avaliable cutting stroke |
2100mm |
|
Cutting thickness scope |
3~100mm |
|
Available cutting height |
1100Kw |
|
Blade frame moving speed |
0~20m/min |
|
Baffle moving speed |
1.5m/min |
|
Total power |
7.24Kw |
|
Machine external size |
L6450*W4200*H2500mm |
